Vertical Transportation

Elevator
Guide Rail

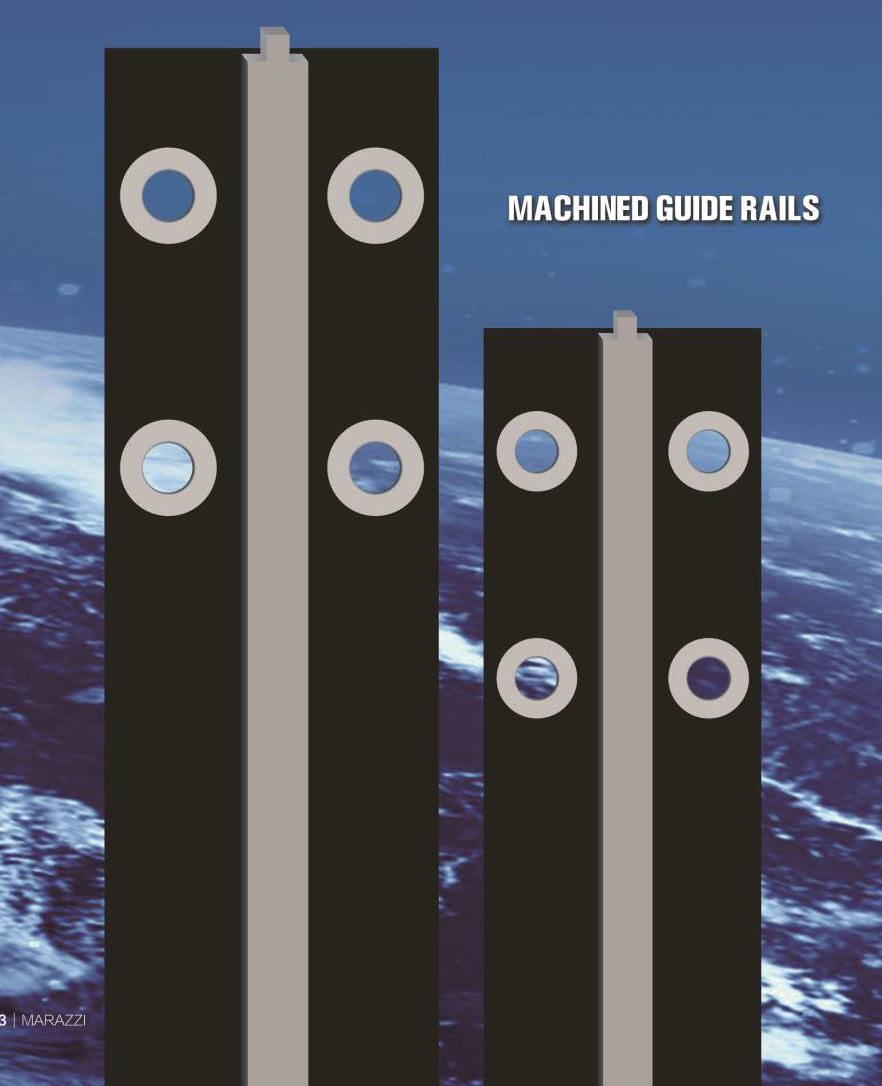

Precision cold-drawn steel guide rails engineered for smooth, safe, and silent elevator travel. Available in T-section profiles for traction, hydraulic, and MRL elevator systems.

T45 · T50 · T70 · T89 ISO 7465 Certified EN 81-20 Compliant
Request a Quote View Specs  →
T89
Max profile
5m
Standard length
Cold-drawn
Steel profile process
ISO 7465
International standard
4 Profiles
T45 · T50 · T70 · T89
5m / 3m
Standard lengths

Why choose it

Engineered for precision

01
Cold-drawn steel precision
Manufactured using a cold-drawing process that ensures consistent dimensional accuracy, superior surface finish, and tighter tolerances compared to hot-rolled alternatives.
02
T-section profile design
Classic T-section geometry provides maximum rigidity along the vertical axis while minimising material weight. Compatible with standard elevator guide shoes and roller guides.
03
Low vibration travel
Precision-machined running surfaces minimise noise and vibration during car and counterweight travel, resulting in a smoother, quieter ride experience.
04
Corrosion resistance options
Available with galvanised or zinc-phosphate coatings for high-humidity and coastal environments, extending service life and reducing maintenance intervals.
05

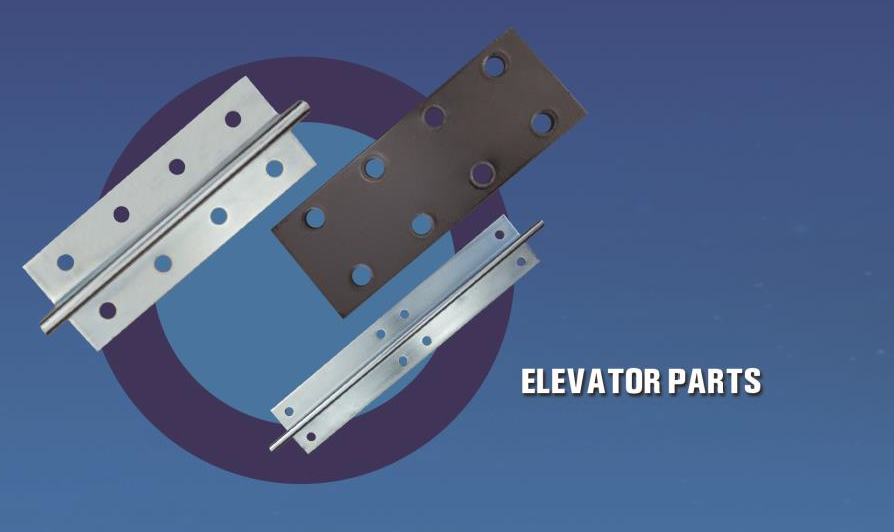

Easy jointing system
Compatible fishplate jointing hardware ensures secure, aligned connections between rail sections, meeting EN 81-20 deflection and alignment requirements.

Available profiles

Choose your rail size

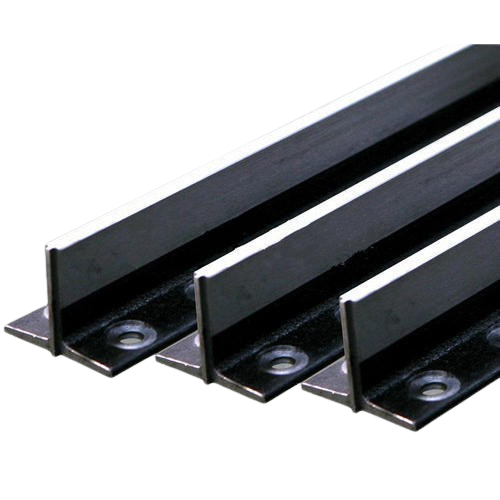

T45 Guide Rail
45 × 45 × 5mm · Light-duty residential lifts · Up to 1,000kg capacity
Residential
T70 Guide Rail
70 × 65 × 9mm · Commercial mid-rise · Up to 2,500kg capacity
Commercial
T89 Guide Rail
89 × 62 × 16mm · High-rise & freight · Up to 5,000kg capacity
Heavy Duty

Technical data

Specifications

Material
Cold-drawn structural steel (S235 / S355)
Profile Type
T-section (solid back)
Available Profiles
T45 · T50 · T70 · T89
Standard Length
5,000mm / 3,000mm
Tolerance Class
Grade A (ISO 7465)
Surface Finish
Bright machined / Galvanised
Yield Strength
≥ 235 N/mm² (S235)
Jointing
Fishplate connectors (supplied separately)
Packaging
Bundled in steel-strapped packs
ISO 7465:2018
Passenger and goods lifts — Guide rails for lifts
EN 81-20:2014
Safety rules for lifts — Passenger and goods lifts
CE Marked
Compliant for use across EU and GCC markets
ISO 9001:2015
Quality management system certified manufacturer

Catalogue

Download our detailed product catalogue with dimensions

Download Catalogue

Where it's used

Applications

Residential Buildings
Home lifts and low-rise apartment elevators with T45 and T50 profiles.
Commercial Towers
Office and hotel high-rise elevators with T70 profiles for heavier loads.
Industrial & Freight
Goods and service lifts in warehouses, hospitals, and factories using T89.
Export Projects
Supplied to lift manufacturers and contractors across Gulf, Africa, and India.

Ready to place an order?
Let's talk specifications.

Our team can advise on profile selection, quantity, delivery timelines, and custom coating requirements. Get in touch today.
